LJYA料漿泵
概述
LJYA系列砂漿泵為單級單吸立式懸臂式離心液下泵。葉輪為半開式,葉輪前后均配有耐磨蓋,廣泛應用于化工流程輸送含30%以下固體顆粒,粘度低于200CP的磨、腐蝕交互作用的介質。特別適用于磷肥工業中輸送磷酸、磷銨料漿等介質。
輸送介質一般低于110C。如需輸送更高溫度的介質,應考慮用冷卻水冷卻軸承。
性能范圍:流量Q= 10~ 400m3/h 揚程H=5-50m。
Summary
Model LJYA series slurry pump is a vertical centilever -type single - stage - single suction centrifugal submergedpump.Its blade wheel is a semi - open type ,In the front andback of the blade wheel instals an abrasio - resistant cov-er. The pump is widely used in chemical process for conveyingmedium containing less then 30% solid granules and with vis-cosity less than 200cp, which is subject to the interaction ofcorrosion and abrasion.It is especially suitable for conveyingsuch medium as phosphoric acid, triammonium phosphorateslurry, etc.In general, the teperature of the conveying mediumis less than 110C.When conveying medium with higher tem-perature, the bearing should be cooled with cooling wa-ter.Performance scope:flowQ= 10-400m3/h Lift H= 5- 50m

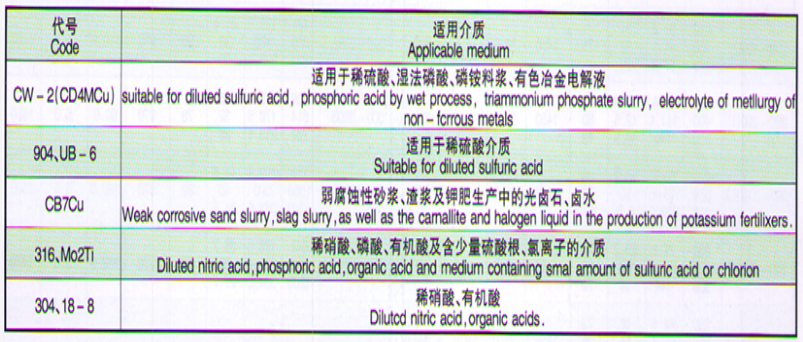

主要制造材料及適用介質:
Main manufacture materials and applicable nedium.
除上述材料外,亦可根據用戸需要迭用其它材料制造。
Besides the above materials ,other manufacture materials can also be chosen according to user's need.

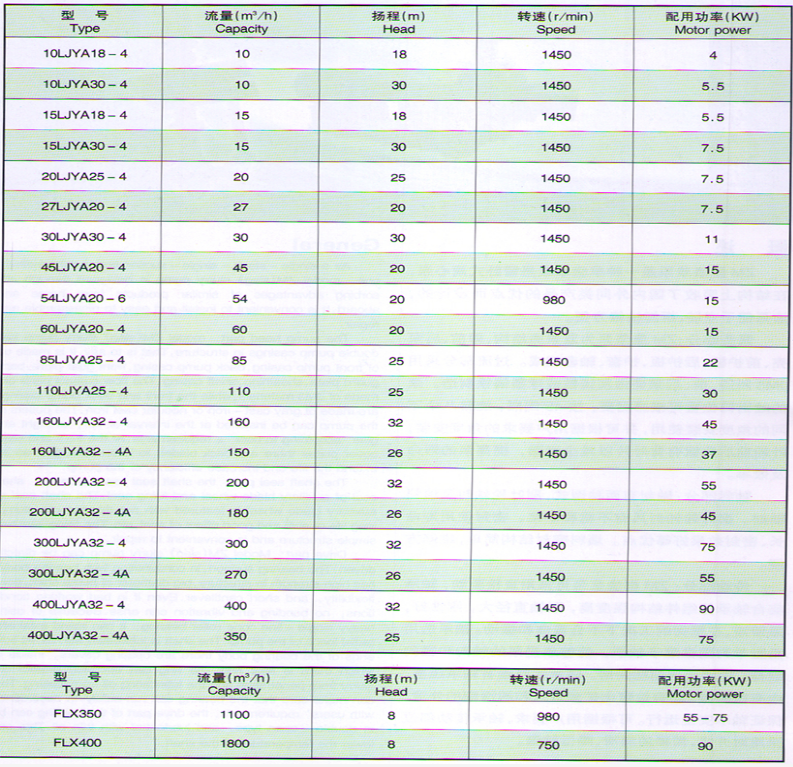

LJYA型泵性能參數表 LJYA Type pump Table of Performance
