CZ化工流程泵
概 述
CZ型化工流程稀酸泵是臥式、單級、單吸離心泵;其尺寸和性能符合DIN24256/ISO2858標準。
CZ系列標準化工泵的性能范圍包括了IH系列標準化工泵所有性能,其效率、汽蝕性能等指標均超過IH型泵,可與H型泵進行單機互換。
用途
CZ型化工流程稀酸泵輸送低溫或高溫液體;中性或有腐蝕生液體;清潔或內含有固體顆粒的液體。特別適用于:
化學和石油化學工業
造紙廠和紙漿業
涂裝行業(脫脂磷化、電泳等工序)
CZ型化工流程稀酸泵的性能
流量(Q) (依據轉速,參見第2頁性能圖)可達2000m3/h
揚程(H) 可達160m
工作壓力(P) 2.5MPa
工作溫度 -80℃~+300℃
特性曲線平坦,汽蝕值低,效率高,在不滿負荷時,也保持這些特性。
Biref Introduction
The standard chemical pump of Model CZ se-ries is a horizontal, single - stage and single - suction centrifugal pump ,its size and property conformto the DIN24256/1SO2858 standard.
The standard chemical pump of Model CZ se-ries have all those properties of the standardchemical pump of Model - IH series, its efficiencyand cavitation property ard better ,and it is alterna-tive with the latter.
Usage
It is used for transmission of low of high temperature liquids, neutral or corrosive liquids, cleanor solid - granular - containing liquids,lt is speciallysuitable for:
Chemical and petrochemical industries.
Paper mills and paper pulp industries.
Coating industry(processes of degreasing,phosphatization ,clcctrophoresis,etc.)
Properties
Capacity(Q) (subject to the operation speed,refer to the diagram of properties in page 2)max2000m/h
Head(H) :max .160m
Operation pressure(P):2.5MPa
Operation temperature(t): -80℃~+300℃
Its characteristics curve is even, its value ofcavitation is Iow, and it has high efficiency andmaintains these properties even if not fully loaded.

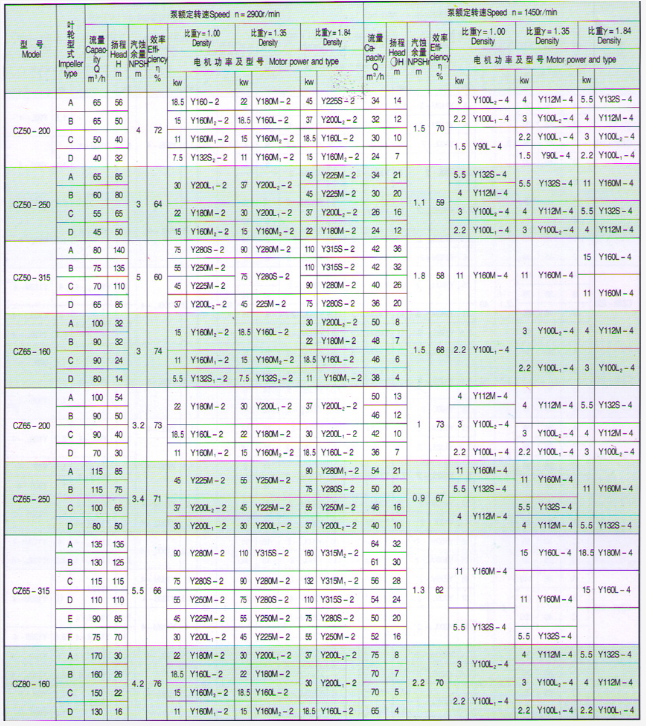

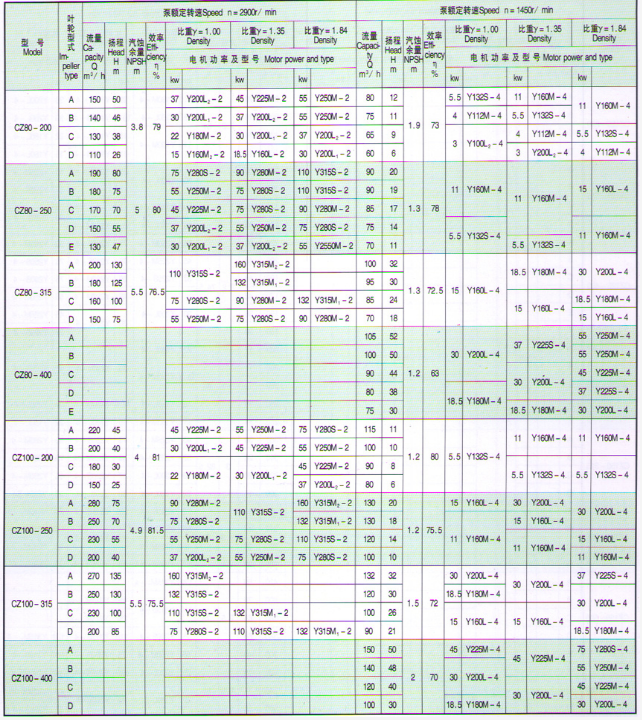

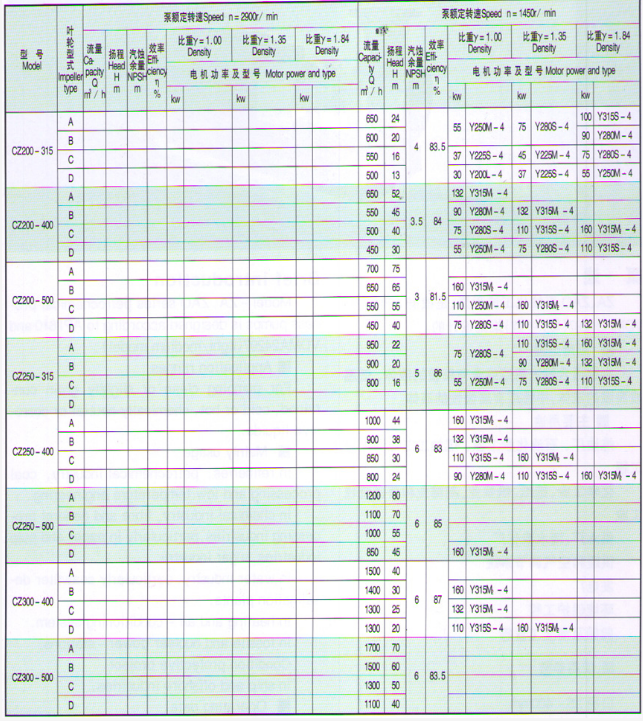

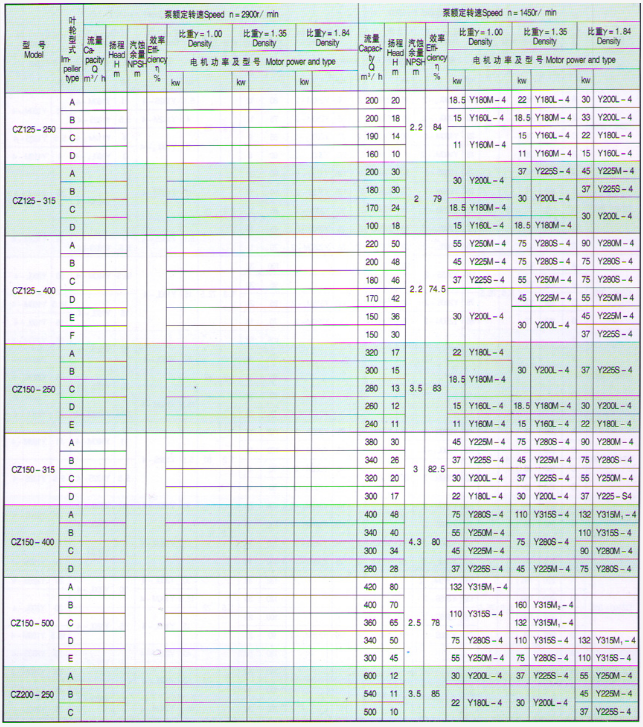

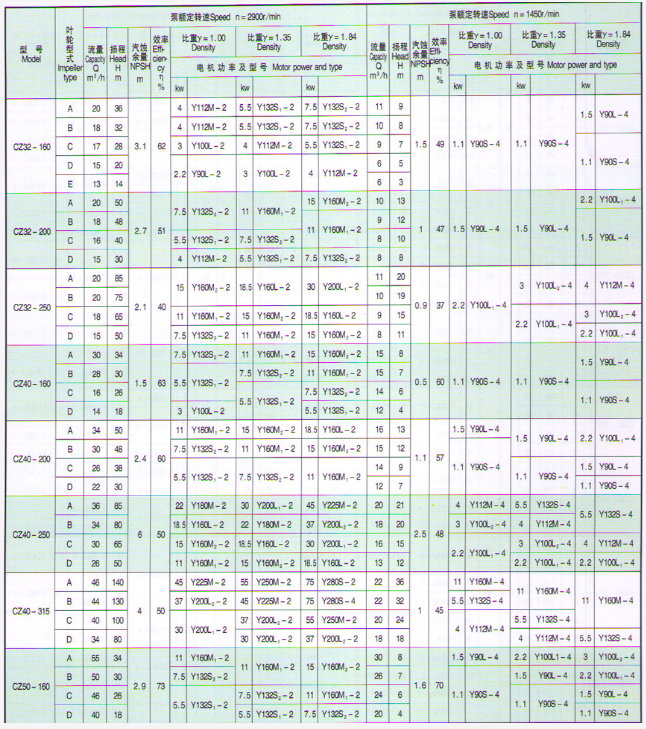

CZ型泵性能參數表 CZ Type pump Table of Performance
說明: *訂貨合同在泵型上還應注明葉輪型式,例如:選CZ40- 250。葉輪式為A,應寫為CZ40- 250A。
*表中有流量、揚程值而無功率值的泵,需訂貨時當面確定。
Explanation: *The impeller type should be indicated in addition to the pump model in the purchasing contract,for ex-ample ,if CZ40 - 250 is selected and the impeller type is“A" ,it should be indicated as CZ40- 250A.
*For a pump listed in the table which has quantity of flow and delivery head but no value of power,it shouldbe discussed and decided when placing the order.
